    MiniMax series

    Quick-Tech's MiniMax series of automatic front saddle lathes include the MiniMax 20i and MiniMax S25i. The series offers the most efficient and cost-saving solution for the mass production of complex 20/25mm diameter workpieces such as those in the medical, IT and other fields.
    The tool block consists 12mm or 16mm wide tools for turning and drilling. The maximum capacity for tools is 28pcs, which allows quick tool changes as the movement time from one tool to the other is minimal. Rotary tools are also provided as an option.
    The machines are equipped with high-precision linear guides HIWIN, which with their 25mm increase the stability of the machine and allow heavy machining.
    The standard milling head consists of 6 driven tools. Fastening is by means of an ER16 collet chuck with 0.5 kw motor and gear. The head can also be fitted with 8 rotary tools if more complex milling is required.

    Марка:QUICKTECH
    [su_spoiler title="MiniMax 20i" anchor="MiniMax 20i"]
    Mitsubishi Management M70
    Main Spindle Max. machining diameter [mm] 20 Hydraulic system Hydraulic motor 1HP
    Max. path length [mm] 100
    Type chuck SR-20R
    Spindle bore [mm] 22 Max. pressure [kg/cm2] 50
    Spindle power [rpm] 8000
    Stroke X axis [mm] 185
    Y axis [mm] 315 Tank capacity [L] 25
    Z axis [mm] 260
    Automatic tool change system Tools for external processing 12mm- 9 tools 12mm- 6 tools
    16mm- 7 tools 16mm- 5 tools    		 Lubrication Lubrication motor [W] 25
    Tools for internal processing 12mm- 6 tools 12mm- 12 tools
    16mm- 6 tool 16mm- 12 tool s    		 Max. pressure [kg/cm2] 15
    Tool axis size [mm] 12 / 16 Tank capacity [L] 2
    Drill hole ER16 / shaft 20mm Cooling system Motor type for cooling 4PUW-1/4-200L
    Mitsubishi
    Motor    		 Spindle SJ-2B4203T Motor cooling capacity [L] 55
    X/Y/Z axes X axis - HF104BS-A48
    Y/Z axis -HF-104S-A48    		 Dimensions of the machine Length/Width/Height [mm] 2160 / 1270 / 1850
    Weight [kg] 2000
    Additional
    Second spindle Max. machining diameter [mm] 20 Rotary tools Quantity of motorized tools 6 or 8 tools
    Max. spindle protrusion [mm] 30 Speed [rpm] 6000
    Type chuck SR-20R Size ER16
    Spindle bore [mm] 22 Max. drilling diameter [mm] 8
    Stroke [mm] X2=320 / Z2=215
    Spindle power [rpm] 8000 Max. cutting capacity M6
    OD tools (for external processing) 2 tools Motor HF-54T-A48
    ID tools (for internal processing) 2 tools C axis Accuracy 0.001°
    Hole for drilling ER16 / shaft 20mm
    Motor SJ-2B4203T
    [/spoiler] [su_spoiler title="MiniMax S25i" anchor="MiniMax S25i"]
    Mitsubishi Management M70
    Spindle Max. machining diameter [mm] 25 Hydraulic system Hydraulic motor [HP] 1
    Max. path length [mm] 75
    Type chuck SR-25R
    Spindle bore [mm] 27 Max. pressure [kg/cm2] 50
    Spindle power [rpm] 8000
    Stroke X axis [mm] 185
    Y axis [mm] 315 Tank capacity [L] 25
    Z axis [mm] 260
    Automatic tool change system Tools for external processing 12mm- 9 tools 12mm- 6 tools
    16mm- 7 tools 16mm- 5 tools    		 Lubrication Lubrication motor [W] 25
    Tools for internal processing 12mm- 6 tools 12mm- 12 tools
    16mm- 6 tools 16mm- 12 tools    		 Max. pressure [kg/cm2] 15
    Tool axis size 12mm / 16mm Tank capacity [L] 2
    Drill hole ER16 / Shaft 20mm Cooling system Motor type for cooling 4PUW-1/4-200L
    Mitsubishi
    Motor    		 Spindle SJ-2B4203T Motor cooling capacity [L] 55
    X/Y/Z axes X-axis-HF104BS-A48 Y/Z-axis-HF-104S-A48 Dimensions of the machine Length/Width/Height [mm] 1710 / 1270 / 1850
    Weight [kg] 2000
    Additional
    Second spindle Max. machining diameter [mm] 25 Motorised tool Quantity of motorized tools 6 or 12 instruments
    Max. spindle protrusion [mm] 30 Speed [rpm] 6000
    Type chuck SR-25R Size ER16
    Stroke [mm] X2=320 / Z2=215
    Spindle bore [mm] 27 Max. drilling diameter [mm] 8
    Spindle power [rpm] 8000 Max. cutting capacity M6
    OD tools (for external processing) 2 tools Motor HF-54T-A48
    ID tools (for internal processing) 2 tools C axis Accuracy 0.001°
    [/spoiler]

    Catalogue

    Свързани продукти

    MCR-A5CII

    MP-46V

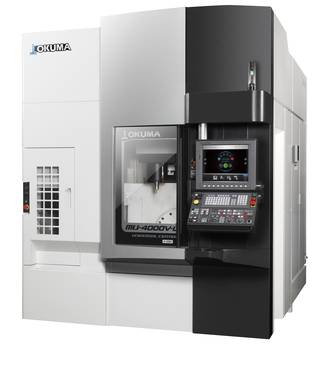

    MU-V series
