    i-42 series

    Quick-Tech's i-42 series includes the i-42 ECO, i-42 PLUS, i-42 Robo, i-42 Twin and i-42 Ultimate. The series is a combination of efficiency and high performance and is suitable for the machining of complex and intricate workpieces. The i-series, as well as Quick-Tech's S-series, are defined as innovative in the field of automation. These versatile turning and milling machines are ushering in a new era when it comes to factors such as precision and reliability. They are ideal for machining complex, single parts and small workpieces. Production times can be reduced to 48%, depending on the part being machined.
    Each model features a flexible tooling system, HIWIN high-precision linear guides, axes that are equipped with digital devices and 360° rotary tools.
    Some of the machines in the i-42 series use 35mm guides that increase stability and precision, allowing heavier machining to be carried out.

    Марка:QUICKTECH
    [su_spoiler title="i-42 ECO" anchor="i-42 ECO"]
    Mitsubishi Management M70
    Spindle size Max. machining diameter [mm] 42.0/60.0 (optional)
    Max. turning length [mm] 200.0
    Type chuck KK5-173E42B/KK6-185E60B(опция)
    Spindle tip ISO(DIN) A2-5/ A2-6
    Spindle bore [mm] 44.0/62.0 (optional)
    Spindle power [rpm] 3000/4000 (4000/6000 option)
    C axis Positioning accuracy 0.001°
    Stroke and Pass X/Y/Z axis travel [mm] 150.0/415.0/230.0
    Automatic tool change system Main spindle tools for external machining 6
    Main spindle tools for internal machining 4
    Tool axis size [mm] 20.0
    Drill hole (main) [mm] ER-20/20.0
    Rotary tools Time [sec] 0.3(single)/0.6(full)
    Number of rotating tools 6 instruments (3 axial, 3 radial)
    Speed [rpm] 4000 (Max.)
    Size ER-20
    Max. drilling diameter [mm] 12.0
    Max. threading capacity M10 X P1.25
    Mitsubishi Motor Main spindle [kW] AC Spindle 7.5/11.0(optional)
    Spindle on X/Y/Z axis [kW] AC Servo 1.0
    Rotating tools [kW] AC Servo 1.5
    Lubrication Motor [W] 25
    Max. pressure [kg/cm2] 25
    Motor [W] / Tank capacity [L] 25 / 2
    Cooling system Type cooling motor 2HP coolant; 4T5-5 high pressure pump
    Tank capacity [L] 160
    Dimensions of the machine Length/Width/Height [mm] 3350/1500/1950
    Weight [kg] 2750
    [/spoiler] [su_spoiler title="i-42 PLUS" anchor="i-42 PLUS"]
    Mitsubishi Management M70
    Spindle size Max. machining diameter [mm] 42.0/60.0 (optional)
    Max. turning length [mm] 200.0
    Type chuck KK5-173E42B/KK6-185E60B(опция)
    Spindle tip ISO(DIN) A2-5/ A2-6
    Spindle bore [mm] 44.0/62.0 (optional)
    Spindle power [rpm] 4000/6000 (optional)
    C axis Positioning accuracy 0.001°
    Stroke and Pass X/Y/Z axis travel [mm] 150.0/415.0/230.0
    X-1/Y-1/Z-1 axis travel [mm] X1-235.0/Z1-335.0
    Automatic tool change system Main spindle tools for external/internal 6 / 5
    Tools on the additional spindle for external/internal – / 6
    Tool axis size [mm] 20.0
    Drill hole (main) [mm] ER-20/20.0
    Drill hole (additional) [mm] ER-20/20.0
    Rotary tools Time [sec] 0.3(single)/0.6(full)
    Number of rotating tools 6 tools
    Speed [rpm] 4000 (Max.)
    Size ER-20
    Max. drilling diameter [mm] 10.0
    Max. threading capacity M8.0 x P1.25
    Mitsubishi Motor Main spindle [kW] AC Spindle 7.5/11.0(optional)
    Spindle on X / Z axis [kW] AC Servo 1.0
    X-1/Z-1 axles [kW] AC Servo 1.0 (X1 Z1)
    Rotating tools [kW] AC Servo 1.0 / 1.5 (optional)
    Hydraulic system Hydraulic motor 1HP
    Max. pressure [psi] 400
    Tank capacity [L] 40
    Lubrication Motor [W] 25
    Max. pressure [kg/cm2] 15
    Tank capacity [L] 2
    Cooling system Type cooling motor Max.pressure:25bar (55kg/cm2) Leakage:30L/min
    Tank capacity [L] 125
    Dimensions of the machine Length/Width/Height [mm] 3150/1500/1900
    Weight [kg] 3200
    [/spoiler] [su_spoiler title="i-42 Robo" anchor="i-42 Robo"]
    Mitsubishi Management M70
    Spindle size Max. machining diameter [mm] 42.0/60.0 (optional)
    Max. turning length [mm] 200.0
    Type chuck KK5-173E42B/KK6-185E60B(опция)
    Spindle tip ISO(DIN) A2-5/ A2-6
    Spindle bore [mm] 44.0/62.0 (optional)
    Spindle power [rpm] 3000 / 4000 (4000 / 6000 option)
    C axis Positioning accuracy 0.001°
    Stroke and Pass X/Y/Z axis travel [mm] 150.0/415.0/230.0
    Automatic tool change system Main spindle tools for external machining 6
    Main spindle tools for external machining 4
    Tool axis size [mm] 20.0
    Drill hole (main) [mm] ER-20/20.0
    Rotary tools Time [sec] 0.3(single)/0.6(full)
    Number of rotating tools 6 instruments (3 axial, 3 radial)
    Speed [rpm] 4000 (Max.)
    Size ER-20
    Max. drilling diameter [mm] 12.0
    Max. threading capacity M10 X P1.25
    Mitsubishi Motor Main spindle [kW] AC Spindle 7.5/11.0(optional)
    Spindle on X/Y/Z axis [kW] AC Servo 1.0
    Rotating tools [kW] AC Servo 1.0 / 1.5 (optional)
    Lubrication Motor [W] 25
    Max. pressure [kg/cm2] 15
    Tank capacity [L] 2
    Cooling system Type cooling motor 2HP coolant ; 4T5-5 high pressure pump
    Tank capacity [L] 160
    Dimensions of the machine Length/Width/Height [mm] 3350/1500/1950
    Weight [kg] 2750
    [/spoiler] [su_spoiler title="i-42 Twin" anchor="i-42 Twin"]
    Mitsubishi Management M70
    Spindle size Max. machining diameter [mm] 42.0/60.0 (optional)
    Max. turning length [mm] 300.0
    Type chuck KK5-173E42B / KK6-185E60B(option)
    Spindle tip ISO(DIN) A2-5/ A2-6
    Spindle bore [mm] 44.0/62.0 (optional)
    Spindle power [rpm] 4000 (6000)
    Additional spindle capacity Max. machining diameter [mm] 42.0
    Max. turning length [mm] 155.0
    Type chuck KK5-173E42B
    Spindle tip ISO(DIN) A2-5
    Spindle bore [mm] 30.0
    Spindle power [rpm] 4000 (6000)
    C axis Positioning accuracy 0.001°
    Stroke and Pass X/Y/Z axis travel [mm] 150.0/415.0/300.0
    X-1/Y-1/Z-1 axis travel [mm] Z1-450.0
    Automatic tool change system Main spindle tools for external/internal machining 6 / 5
    Tools on the additional spindle for external/internal machining 3 / 4
    Tool axis size [mm] 20.0
    Drill hole (main) [mm] ER-20/20.0
    Drill hole (additional) [mm] ER-20/20.0
    Rotary tools Time [sec] 0.3(single)/0.6(full)
    Number of rotating tools 12 tools
    In the axis 360°
    Speed [rpm] 4000 (Max.)
    Size ER-20
    Max. drilling diameter [mm] 12.0
    Max. threading capacity M10 X P1.25
    Mitsubishi Motor Main spindle [kW] AC Spindle 7.5/11.0(optional)
    Additional spindle [kW] AC Spindle 3.7
    Spindle on X / Z axis [kW] AC Servo 1.5
    X-1/Z-1 axles [kW] AC Servo 1.5(Z1)
    Rotating tools [kW] AC Servo 1.5
    Hydraulic system Hydraulic motor [HP]/ Tank capacity [L] 1 / 50
    Max. pressure [kg/cm2] 50
    Lubrication Motor [W] / Tank capacity [L] 25 / 2
    Max. pressure [kg/cm2] 15
    Cooling system Type cooling motor Max. pressure: 5bar(4.6kg/cm2) Leakage: 75L/min
    Type hydraulic motor Max. pressure: 25bar(55kg/cm2) Leakage: 30L/min
    Tank capacity [L] 240
    Dimensions of the machine Length/Width/Height [mm] 3500/1800/1900
    Weight [kg] 3800
    [/spoiler] [su_spoiler title="i-42 Ultimate" anchor="i-42 Ultimate"]
    Mitsubishi Management M720
    Spindle size Max. machining diameter [mm] 42.0/60.0 (optional)
    Max. turning length [mm] 250.0
    Type chuck KK5-173E42B / KK6-185E60B(option)
    Spindle tip ISO(DIN) A2-5/ A2-6
    Spindle bore [mm] 44.0/62.0 (optional)
    Spindle power [rpm] 4000 (6000)
    Additional spindle capacity Max. machining diameter [mm] 42.0
    Max. turning length [mm] 100.0
    Type chuck KK5-173E42B
    Spindle tip ISO(DIN) A2-5
    Spindle bore [mm] 30.0
    Spindle power [rpm] 4000 (6000)
    C axis Positioning accuracy 0.001°
    Stroke and Pass X/Y/Z axis travel [mm] 150.0/385.0/250.0
    X-1/Y-1/Z-1 axis travel [mm] 450.0 / 400.0 / 300.0
    Automatic tool change system Main spindle tools for external/internal machining 6 / 5
    Tools on the additional spindle for external/internal machining 5 / 9
    Shaft size [mm] 20.0
    Drill hole (main) [mm] ER-20/20.0
    Drill hole (additional) [mm] 20.0
    Rotary tools Time [sec] 0.3(single)/0.6(full)
    Number of rotating tools First comb 12 instruments/ Second comb 12 instruments
    In the axis 360°
    Size ER-20
    Max. drilling diameter [mm] 12.0
    Max. threading capacity M10 X P1.25
    Mitsubishi Motor Main spindle [kW] AC Spindle 7.5/11.0(optional)
    Additional spindle [kW] AC Spindle 3.7
    X / Y / Z / X1 / Y1 / Z1 axes [kW] AC Servo 1.5
    Rotating tools [kW] AC Servo 1.5
    Hydraulic system Hydraulic motor [HP]/ Tank capacity [L] 1 / 75
    Max. pressure [kg/cm2] 50
    Lubrication Motor [W] / Tank capacity [L] 25 / 2
    Max. pressure [kg/cm2] 15
    Cooling system Type cooling motor Motor：2kw Max. pressure：5bar(4.6kg/cm2)
    leakage：75L/min Motor type：4T5-5
    Type hydraulic motor Motor：1.5kw Max. pressure：25bar(55kg/cm2)
    Leakage：30L/min Motor type：2HP+SF-30C
    Tank capacity [L] 240
    Dimensions of the machine Length/Width/Height [mm] 3500(2900) / 1900 / 1900
    Weight [kg] 4200
    [/spoiler]

    Catalogue

    Свързани продукти

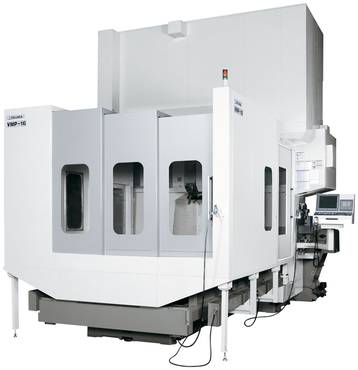

    VMP-16

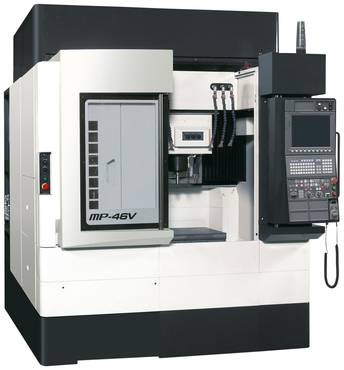

    MP-46V

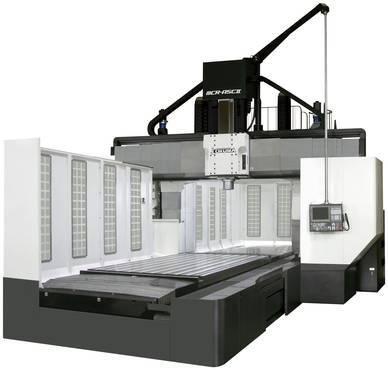

    MCR-A5CII

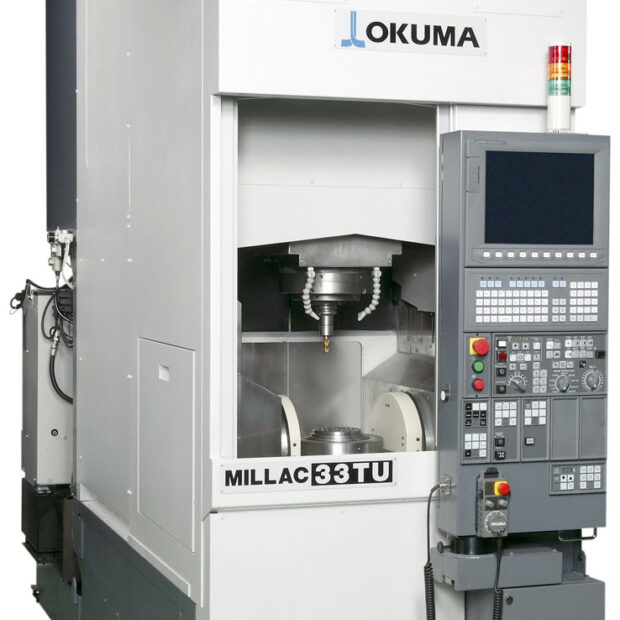

    MILLAC 33TU
