| Spindle power | 3.75KW (3HP) |
| Feed speed | 70-3600 rpm |
| Table dimensions | 1473 x 305 mm |
| T channels width/number | 15.9 mm/3 |
| Longitudinal stroke, X axis | 1000 mm |
| Cross stroke, Y axis | 410 mm |
| Vertical travel at an angle, Z axis | 400 mm |
| Sliding guides | Hardened |
| Stroke of the frame | 450 mm |
| Tool grip | 40 ISO |
| Feeding the box | .038 .076 .15 mm |
| Stroke of the butt | 127 mm
(110 mm if SMX3) |
| ⌀ on the buck | 105 mm |
| Maximum load | 580 kg |
| Rotation of revolver head | 360° |
| Tilting head forward/backward | 45°-45° |
| Tilt head left/right | 90°-90° |
| Maximum throat depth | 700 mm |
| Approximate net weight | 1850 kg |

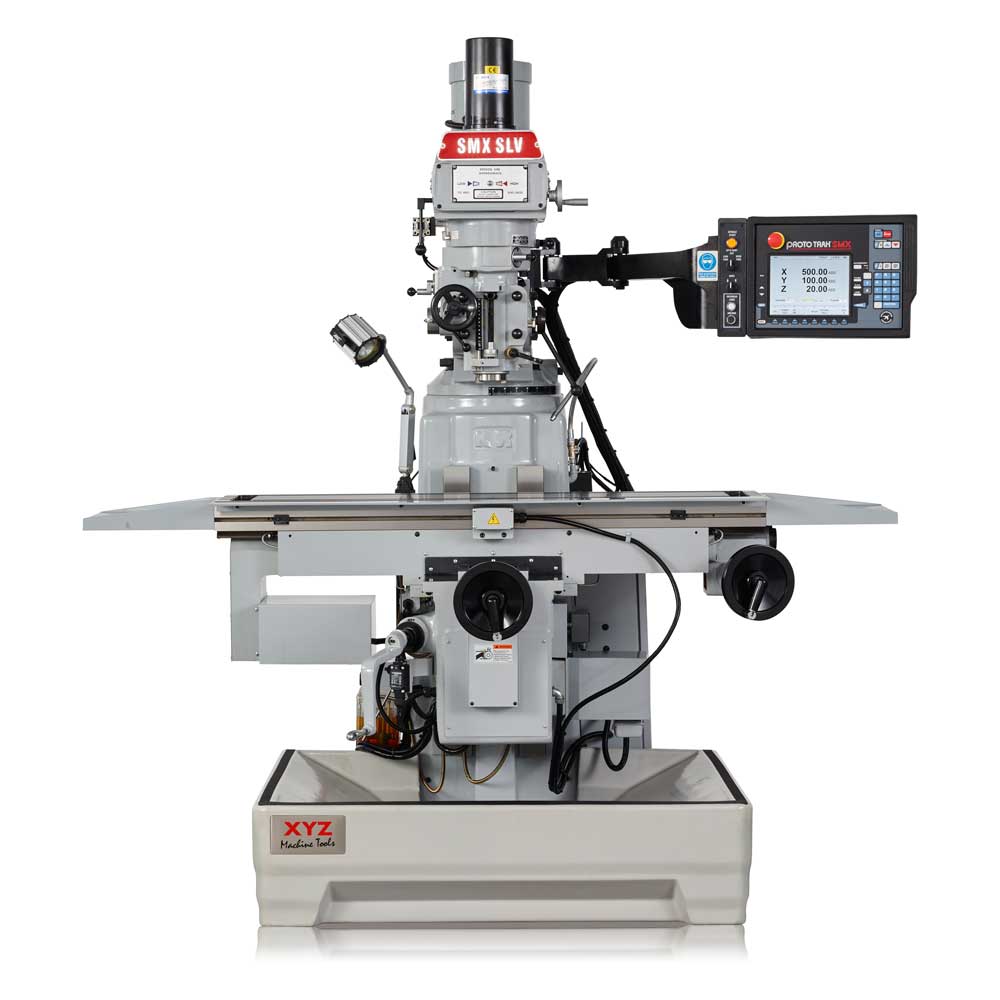

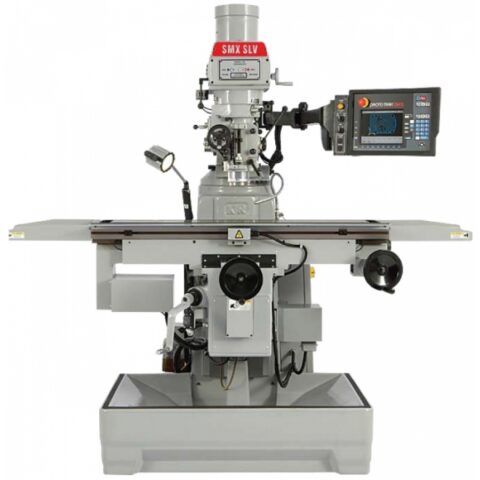

XYZ SMX SLV

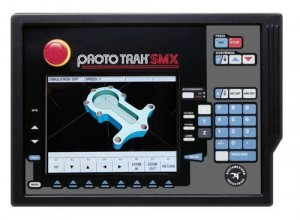

XYZ's SMX SLV machine features a 2-axis or 3-axis ProtoTRAK SMX CNC.
Standard machine equipment includes:
- 2-axis CNC (3-axis optional)
- Chrome or hardened sliding guides
- Cooling installation
- 3-axis DRO
- Work area lighting
- Precision ground ball screws
- Increase power
- Automatic plastering system
- Operator table protection
- "Stand on" chip vat
Brand:XYZ
