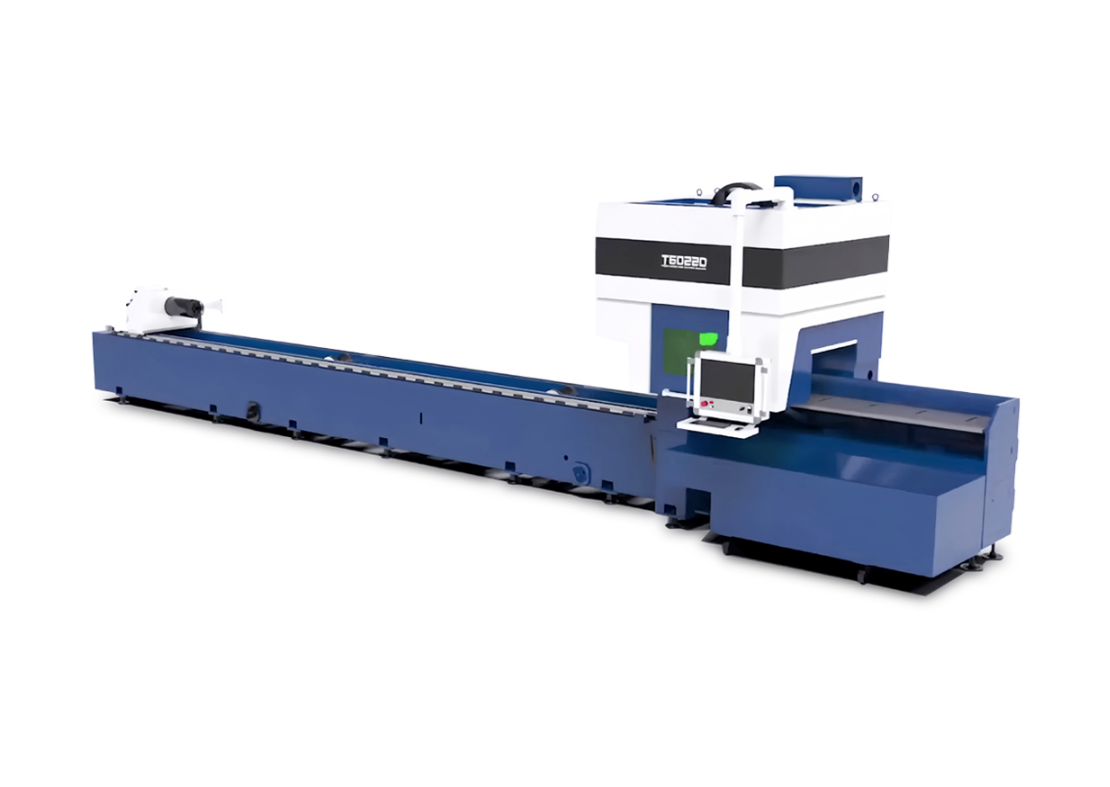

The TD Series from Han's Laser are a series of lasers specifically designed for tube cutting. Han's tube laser series uses a combined modular structure for loading and unloading. Its design is modular and can be easily combined. The laser has an optional ±45° slope cutting function.
Horizontal welding bed
- The machine has horizontal structure, high-precision rack and pinion and high-precision linear guide rail, with stable transmission and high precision. It is equipped with a jamming device, which improves the production efficiency of the machine tool.
- The lathe bed is made of welded structure, undergoes rough machining after annealing, vibration aging and machining. It has good welding and machining stress, has good hardness, high precision, and can be used for a long time without deformation.
"Negative pressure dusting" in the pipe
The inside of the tube and the cutting area adopt negative pressure vacuum dust removal, which has good dust removal effect and is clean and environmentally friendly.
-
Pneumatic clamping with four-claw pulley and self-centering function is realized by clamping and tightening the connection. The feed chuck seat and fixed chuck seat are of plate welding structure. After high-temperature annealing, rough machining, adding vibration and high-precision machining, the chuck has good rigidity, light weight and good dynamic performance.
Han's laser cutting head
- The cutting head uses capacitive sensor, which has high reading accuracy, sensitive response, stable and reliable operation.
- X, Y, Z linear axes and A, B rotary axes use high-precision, high-resolution, high-torque servo motor, which has high precision, high speed, large inertia, stable and durable performance, providing high speed and acceleration of the whole machine.
Laser source
The fiber laser developed independently by Han's Laser has the advantages of large heat scattering area, good beam quality, small size, etc. Compared with gas laser and solid state laser, it has obvious advantages and has gradually become an important candidate in high
Professional nesting software
- Provides a series of cutting modules including line cutting, various groove cutting, hole and jig cutting and various angle cutting that are simple and practical and you get what you see.
