XYZ's SMX series includes the SMX 2500, SMX 3500, SMX 4000 and SMX 5000 machines. Part of the

The standard equipment of the machines includes:
- ProtoTRAK SMX control system - 3-axis control
- LCD display with adjustable contrast
- Programmable spindle speed
- High precision ball screws
- Cooling installation
- Automatic plastering system
- Caldron for chips
- Work area lighting
- Operator table protection, etc.

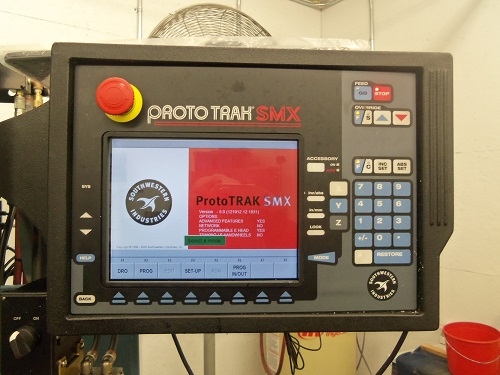

The ProtoTRAK SMX control system allows repetition of programmed cycles with or without offsets and seamless transition between manual mode and 3-axis CNC.

Марка:XYZ

Описание

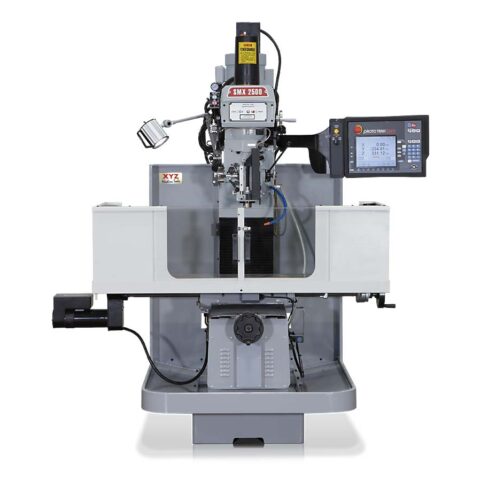

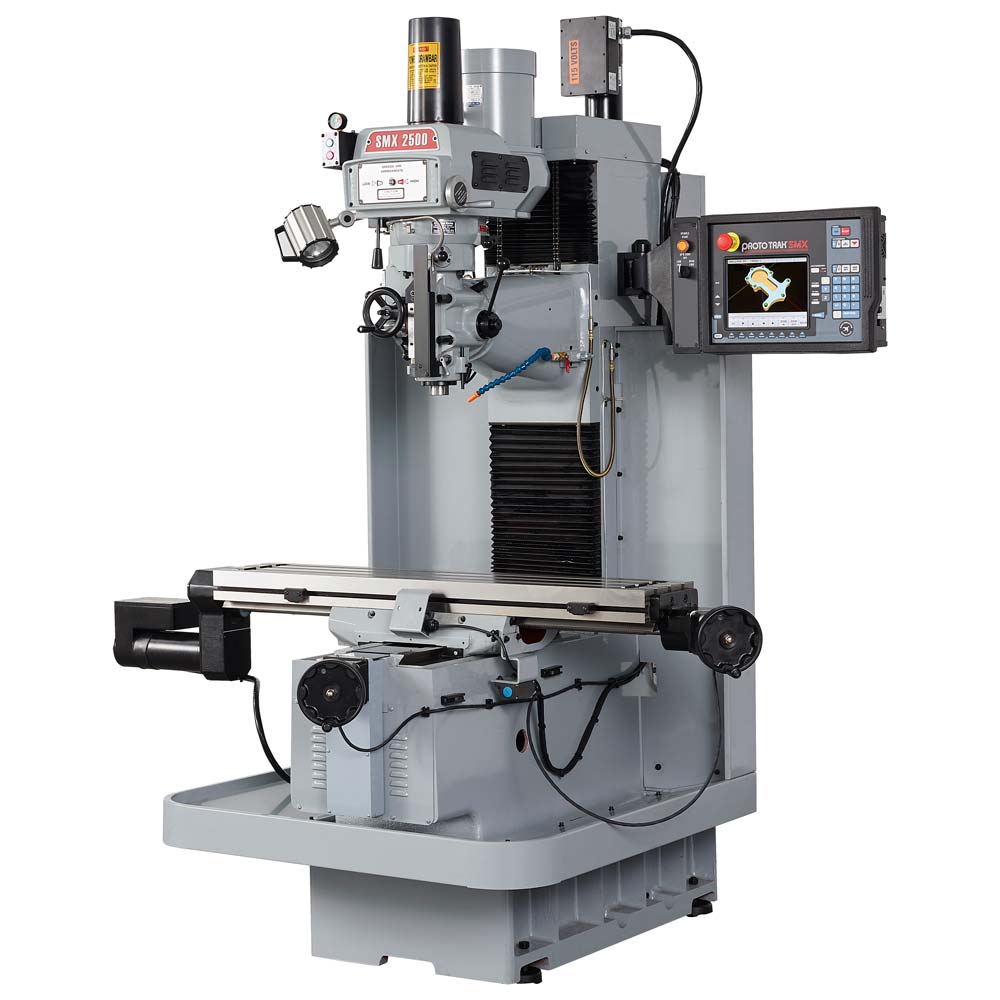

[su_spoiler title="SMX 2500″ anchor="SMX 2500″]

Spindle power	2.2KW (3HP)
Spindle speed	40-3600 rpm
Two-speed gear	Variable speed
Table dimensions	1245 X 228 mm
T-channels width/number	15.9 mm/ 3
Longitudinal stroke, X axis	780 mm
Cross stroke, Y axis	390 mm
Vertical head travel, Z axis	560 mm
Tool grip	R8 / IS030 *Option
Feeding the box	.038 .076 .15 mm
Stroke of the butt	127 mm
⌀ on the buck	85.7 mm
Maximum load	600 kg
Tilt head left/right	45°-45°
Throat depth	460 mm
Weight	1900 kg

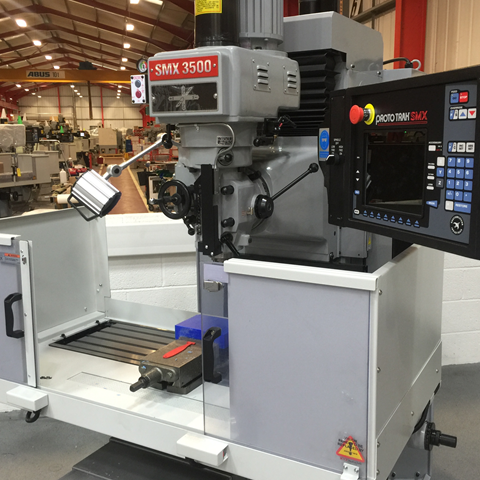

[/spoiler] [su_spoiler title="SMX 3500″ anchor="SMX 3500″]

Spindle power	3.75 KW (5HP)
Spindle speed	40-5000 rpm
Two-speed gear	Standard
Table dimensions	1372 x 356 mm
T-channels width/number	15.9 mm/ 4
Longitudinal stroke, X axis	787 mm
Cross stroke, Y axis	508 mm
Vertical head travel, Z axis	500 mm (programmable) - can be increased to 530 mm but will limit the Y axis to 480 mm
Tool grip	IS040
Feeding the box	.038 .076 .15 mm
Stroke of the butt	127 mm
⌀ on the buck	105 mm
Maximum load	600 kg
Tilting head forward/backward	45°-45°
Throat depth	520 mm
Weight	2300 kg

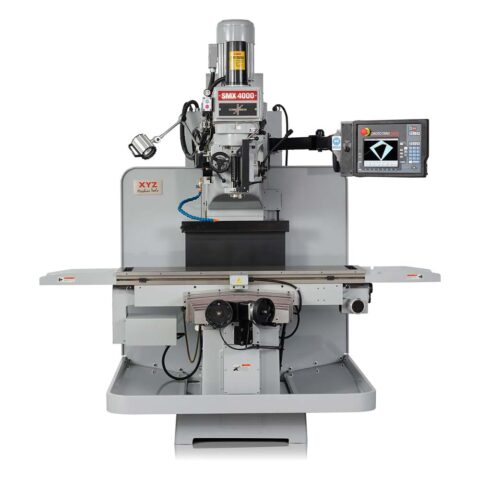

[/spoiler] [su_spoiler title="SMX 4000″ anchor="SMX 4000″]

Spindle power	5.75 KW (7.5HP)
Spindle speed	40-5000 rpm
Two-speed gear	Standard
Table dimensions	1470 x 356 mm
T-channels width/number	15.9 mm/ 4
Longitudinal stroke, X axis	1016 mm
Cross stroke, Y axis	596 mm
Vertical head travel, Z axis	584 mm
Tool grip	IS040
Feeding the box	.038 .076 .15 mm
Stroke of the butt	140 mm
⌀ on the buck	116 mm
Maximum load	850 kg
Tilt head left/right	45°-45°
Throat depth	610 mm
Weight	2750 kg

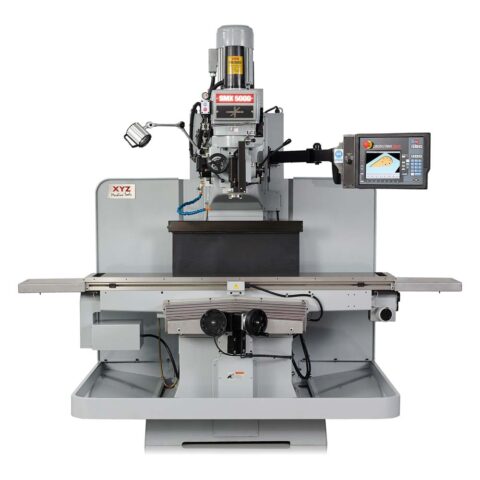

[/spoiler] [su_spoiler title="SMX 5000″ anchor="SMX 5000″]

Spindle power	5.75 KW (7.5HP)
Spindle speed	40-5000 rpm
Two-speed gear	Standard
Table dimensions	1930 x 356 mm
T-channels width/number	15.9 mm/ 4
Longitudinal stroke, X axis	1524 mm
Cross stroke, Y axis	596 mm
Vertical head travel, Z axis	540 mm
Tool grip	IS040
Feeding the box	.038 .076 .15 mm
Stroke of the butt	140 mm
⌀ on the buck	116 mm
Maximum load	850 kg
Tilt head left/right	45°-45°
Throat depth	610 mm
Weight	3100 kg

[/spoiler]
