| Features | KB-150-W | |
| Ø of pinhole | mm | 150 |
| Stroke of the quill, "W" axis | mm | 800 |
| Spindle power | kW | 37 / 46 |
| Spindle speed | rpm | 3000 |
| Longitudinal stroke , "X" axis | mm | 2000 ÷ 5000 |
| Table size / weight of parts | mm / Tn | 1600×1600 / 10Tn ÷ 2500×3000 / 30Tn |
| Table rotation, "B" axis | º | 0,001º |
| Vertical stroke, "Y" axis | mm | 2100 / 2600 / 3200 |
| Cross stroke, "Z" axis | mm | 1500 / 2000 / 2500 |
| Tool shop | Number | 30 / 40 / 60 / 80 |
KB-150-W

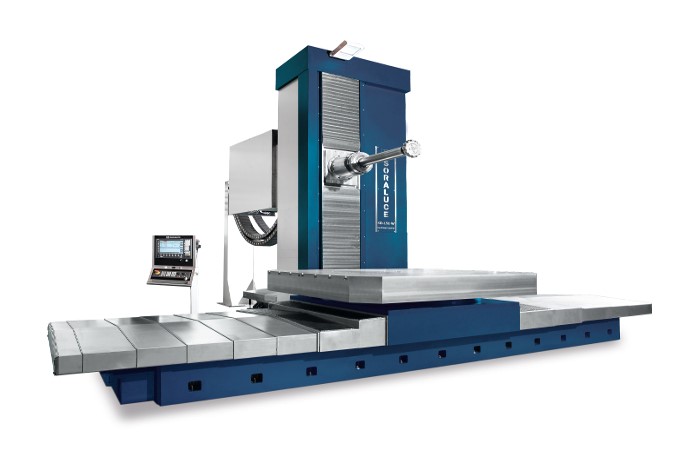

The SORALUCE KB-150-W is a horizontal T-shaped boring machine for efficient multifunctional machining of workpiece faces. The machine can load large workpieces up to 30000kg and has been tested for maximum robustness to reduce vibration during machining. The stability of the machine is guaranteed by linear guides with recirculating bearings on each axis (X-Y-Z), and hydrostatic isolators on the Y-axis.
The KB-150-W provides the ability to combine a wide variety of options and accessories, covering the requirements of the most demanding sectors and workpieces. The linear guide system with high load capacity and low friction coefficient for all axes, provides the dynamics needed to improve machining efficiency.
Brand:SORALUCE
