| Spindle power | 2.25KW (3HP) |
| Spindle speed | 75-4200 rpm |
| Table dimensions | 1270 x 254 mm |
| T channels width/number | 15.9 mm/3 |
| Longitudinal stroke, X axis | 750 mm |
| Cross stroke, Y axis | 380 mm |
| Vertical travel at an angle, Z axis | 406 mm |
| Stroke of the frame | 450 mm |
| Tool grip | R8/30 ISO
option |
| Stroke of the butt | 127 mm |
| Feeding the box | .038 mm .076 mm
.203 mm |
| ⌀ on the buck | 86 mm |
| Maximum load | 350 kg |
| Rotation of revolver head | 360° |
| Tilting head forward/backward | 45°-45° |
| Tilt head left/right | 90°-90° |
| Throat depth | 686 mm |
| Weight | 1250 kg |
XYZ 2000

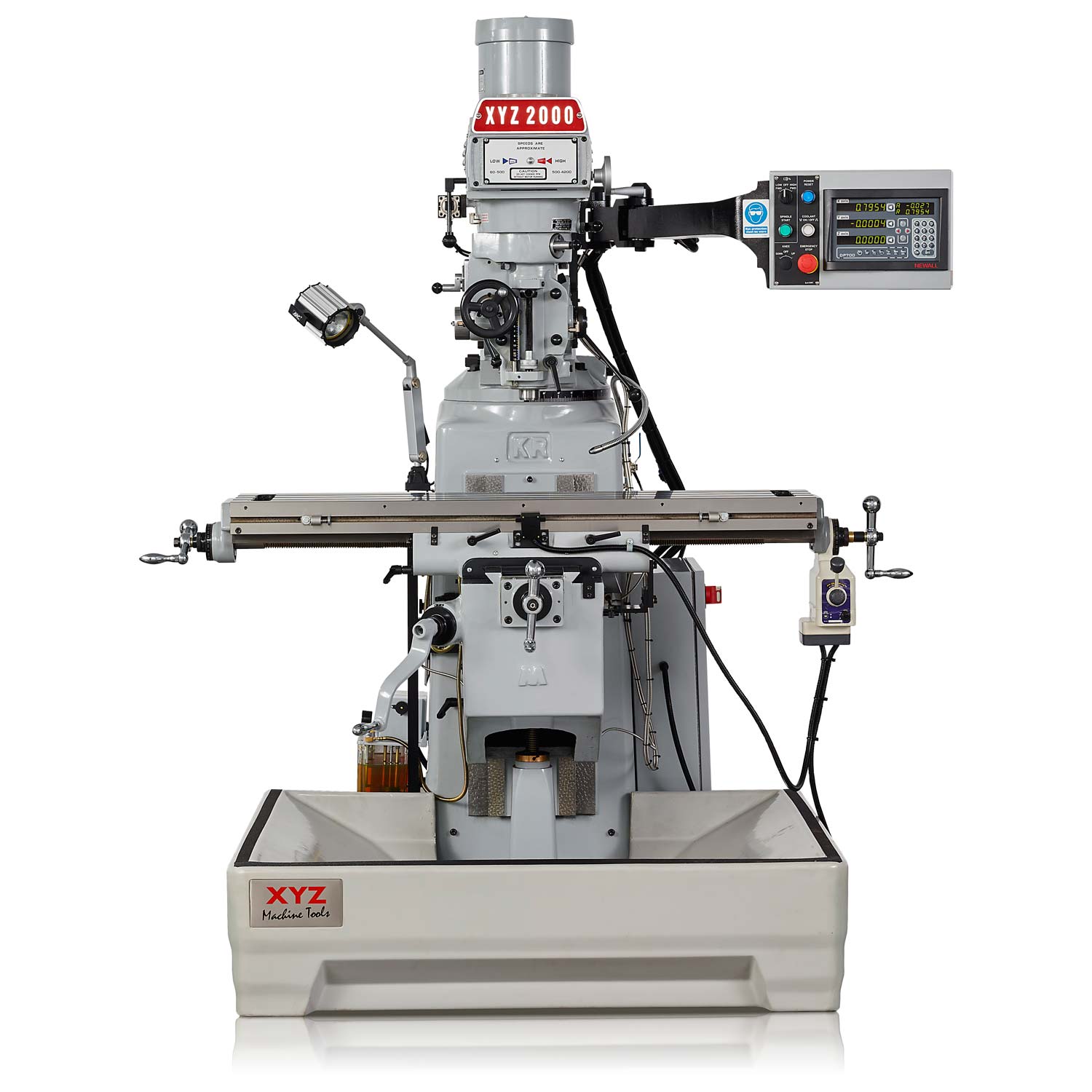

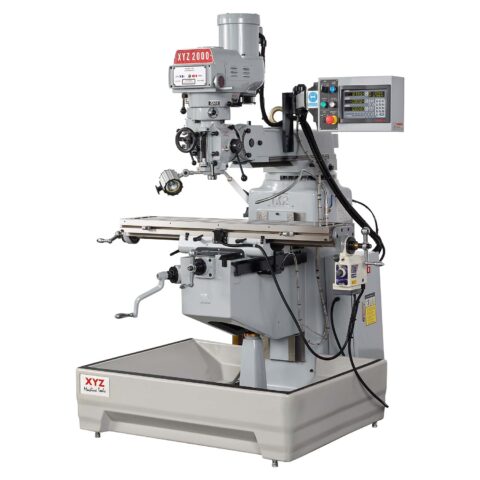

The XYZ 2000 is a manual mode milling machine with a spindle power of 2.25kW and a Newall DP 700 DRO digital screen.
Brand:XYZ
