| X stroke | 355 mm |
| Y-stroke | 305 mm |
| Z-stroke | 455 mm |
| Table dimensions | 457 x 381 mm |
| Spindle to table | 70 - 525 mm |
| Quick moves on XYZ | 15 m/min |
| Maximum load | 250 kg |
| T-Channel | 16 mm |
| T-channels/number of slots | 4/63 mm |
| Spindle speed | 50 - 6,000 rpm |
| Spindle power | 3 HP |
| Tool grip | BT 30 |
| Tool shop - capacity | 8 |
| Maximum ⌀ of the tool | 50 mm |
| Dimensions of the machine | 760 x 1,220 x 2,565 mm |
| Weight | 1100 kg |

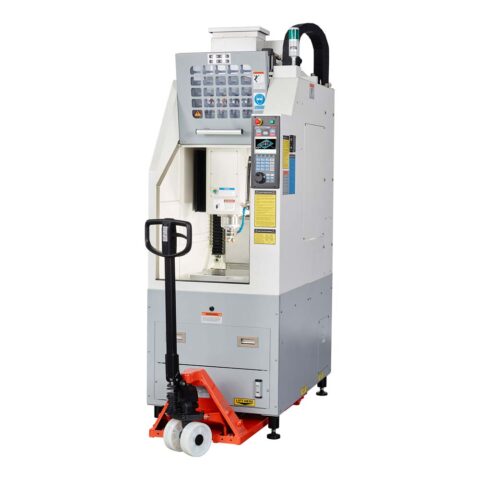

ProtoTRAK 2-OP
XYZ's 2-OP machine offers good and efficient productivity in a small footprint. Most of the machines wait for the completion of 1 cycle before starting another. 2-OP enables faster production during this waiting time.
Standard machine equipment includes:

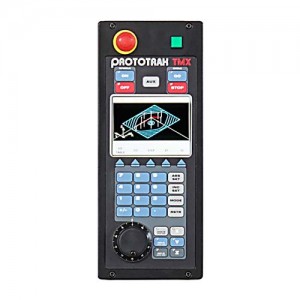

- ProtoTRAK TMX control system - CNC and DRO 3-axis control
- Cooling pump
- 2 USB ports
- 5" colour matrix LCD display with integrated light
- Tidy front panel with several hard keys
- Programmable spindle speed
- Windows operating system, etc.
- High precision ball screws
- Cooling installation
- Automatic plastering system
- Caldron for chips
- Work area lighting
- Operator table protection, etc.
The ProtoTRAK SMX control system allows repetition of programmed cycles with or without offset and seamless transition between manual mode and 3-axis CNC.
Brand:XYZ
