Multifunctional milling machines

SORALUCE's FL, FP, FS, FR, FX and FXR multi-function milling machines offer exceptional flexibility that enables increased productivity.
The milling-drilling centres can be used with a wide range of additional features and accessories, such as different milling/drilling heads, automatic tool changing system, base built into the floor, corner plates, auxiliary tables, rotary tables as well as moving rotary tables, modular system with interchangeable pins, etc.
These options make the machines the most versatile machining centres on the market.

Areas of application:

FL, FP - The machines are applicable in the fields of land transport, precision tool making, capital goods and medium-sized parts.
FS, FR, FX, FXR - The machines are applicable in the fields of energy sector (wind power, gas, nuclear power), shipbuilding, railway sector and capital goods.

Марка:SORALUCE

Описание

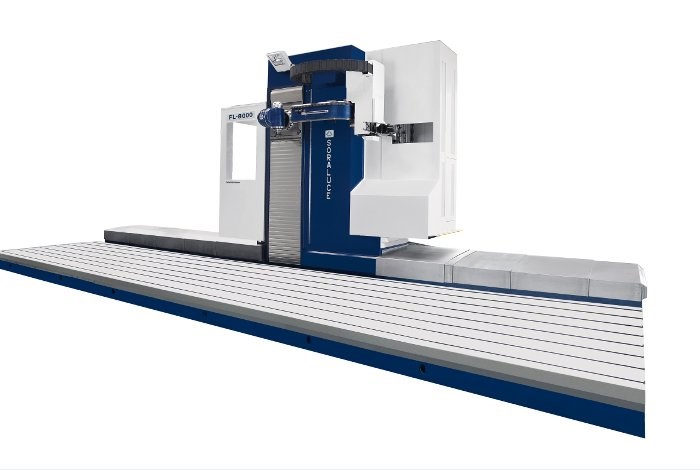

[su_spoiler title="FL (Y ≤ 2200 mm)" anchor="FL (Y ≤ 2200 mm)"]

Features		FL
Longitudinal stroke, "X" axis	mm	3000 ÷ 30000
Vertical stroke, "Y" axis	mm	1400 / 1800 / 2200
Cross stroke, "Z" axis	mm	1000 / 1300
Spindle power	kW	43
Spindle speed	rpm	4000 / 5000 / 6000
Rapid traverse m/min	mm/min	35000
Tool shop	Number	20 / 30 / 40 / 60 / 80

[/spoiler] [su_spoiler title="FP (Y ≤ 3200 mm)" anchor="FP (Y ≤ 3200 mm)"]

Features		FP
Longitudinal stroke, "X" axis	mm	4000 ÷ 30000
Vertical stroke, "Y" axis	mm	2100 / 2600 / 3200
Cross stroke, "Z" axis	mm	1300 / 1500
Spindle power	kW	43
Spindle speed	rpm	4000 / 5000 / 6000
Rapid traverse m/min	mm/min	35000
Tool shop	Number	30 / 40 / 60 / 80 / 100 / 120

[/spoiler] [su_spoiler title="FS (Y ≤ 3600 mm)" anchor="FS (Y ≤ 3600 mm)"]

Features		FS
Longitudinal stroke, "X" axis	mm	4000 ÷ 30000
Vertical stroke, "Y" axis	mm	3200 / 3600
Cross stroke, "Z" axis	mm	1600
Power	kW	40 / 43 / 46
Spindle speed	rpm	4000 / 5000 / 6000
Rapid traverse m/min	mm/min	25000
Tool shop	Number	40 60 / 80 / 100 / 120

[/spoiler] [su_spoiler title="FR (Y ≤ 4500 mm)" anchor="FR (Y ≤ 4500 mm)"]

Features		FR
Longitudinal stroke, "X" axis	mm	4000 ÷ 30000
Vertical stroke, "Y" axis	mm	3600 / 4000 / 4500
Cross stroke, "Z" axis	mm	1600 / 1900
Pin stroke, "W" axis	mm	700 / 1000
Spindle power	kW	46 / 60 / 70 / 100
Spindle speed	rpm	4000 / 5000 / 6000
Rapid traverse m/min	mm/min	25000
Tool shop	Number	60 80 / 100 / 120 / 150

[/spoiler] [su_spoiler title="FX (Y ≤ 5300 mm)" anchor="FX (Y ≤ 5300 mm)"]

Features		FX
Longitudinal stroke, "X" axis	mm	6000 ÷ 30000
Vertical stroke, "Y" axis	mm	4800 / 5300
Cross stroke, "Z" axis	mm	1600 / 1900
Pin stroke, "W" axis	mm	700 / 1000
Spindle power	kW	46 / 60 / 70 / 100
Spindle speed	rpm	4000 / 5000 / 6000
Rapid traverse m/min	mm/min	25000
Tool shop	Number	60 / 80 / 100 / 120 / 150 / 200 / 250

[/spoiler] [su_spoiler title="FXR (Y ≤ 8000 mm)" anchor="FXR (Y ≤ 8000 mm)"]

Features		FXR
Longitudinal stroke, "X" axis	mm	6000 ÷ 30000
Vertical stroke, "Y" axis	mm	6000 / 6500 / 7000 / 8000
Cross stroke, "Z" axis	mm	1600 / 1900
Pin stroke, "W" axis	mm	700 / 1000
Spindle power	kW	46 / 60 / 70 / 100
Spindle speed	rpm	4000 / 5000 / 6000
Rapid traverse m/min	mm/min	20000
Tool shop	Number	60 / 80 / 100 / 120 / 150 / 200 / 250
